- Codice RS:
- 234-1668
- Codice costruttore:
- SM91076L-E
- Costruttore:
- Bourns
345 Disponibile per la consegna entro 1 giorni lavorativi, per ordini effettuati entro le 19:00 (magazzini in Europa/UK)
Aggiunto
Prezzo per Unità
5,34 €
(IVA esclusa)
6,51 €
(IVA inclusa)
Unità | Per unità |
1 - 9 | 5,34 € |
10 - 49 | 4,40 € |
50 - 99 | 3,28 € |
100 - 249 | 3,18 € |
250 + | 3,01 € |
- Codice RS:
- 234-1668
- Codice costruttore:
- SM91076L-E
- Costruttore:
- Bourns
Documentazione Tecnica
Normative
- Paese di origine:
- CN
Dettagli prodotto

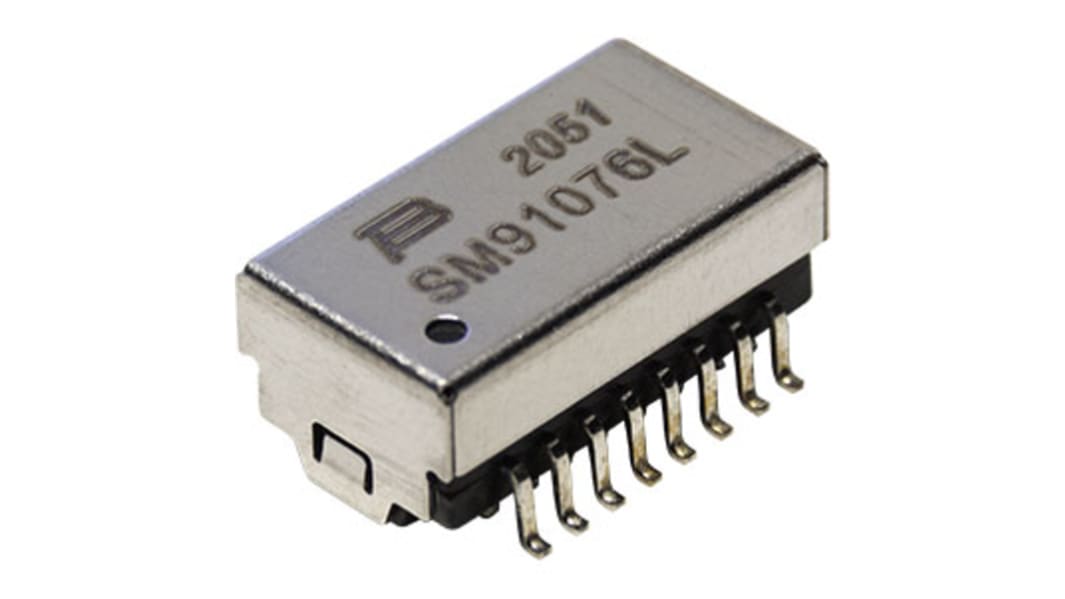

Il trasformatore Bourns Electronics base-T viene fornito con un'ulteriore schermatura metallica per l'immunità ai picchi di corrente e prestazioni EMC superiori e tensione nominale Hi-Pot di 2250 V c.c. o 1500 V c.a.
Induttanza di dispersione massima di 1 0.5μH
Temperatura d'esercizio da -40 °C a +125 °C.
Temperatura d'esercizio da -40 °C a +125 °C.
Specifiche
Attributo | Valore |
---|---|
Numero di porte in uscita | 1 |
Perdita di inserzione | -1.4dB |
Tipo di montaggio | Montaggio superficiale |
Dimensioni | 13.30 x 7.40mm |
Profondità | 6.1mm |
