- Codice RS:
- 819-3298
- Codice costruttore:
- K8AK-VS3 24VAC/DC
- Costruttore:
- Omron
2 Entro 1 giorni lavorativi per ordini effettuati entro le 19:00 (magazzini in Europa)
37 Entro 1 giorni lavorativi per ordini effettuati entro le 19:00 (magazzini in Europa)
Aggiunto
Prezzo per Unità
130,86 €
(IVA esclusa)
159,65 €
(IVA inclusa)
Unità | Per unità |
1 - 4 | 130,86 € |
5 + | 125,55 € |
- Codice RS:
- 819-3298
- Codice costruttore:
- K8AK-VS3 24VAC/DC
- Costruttore:
- Omron
Documentazione Tecnica
Normative
Dettagli prodotto

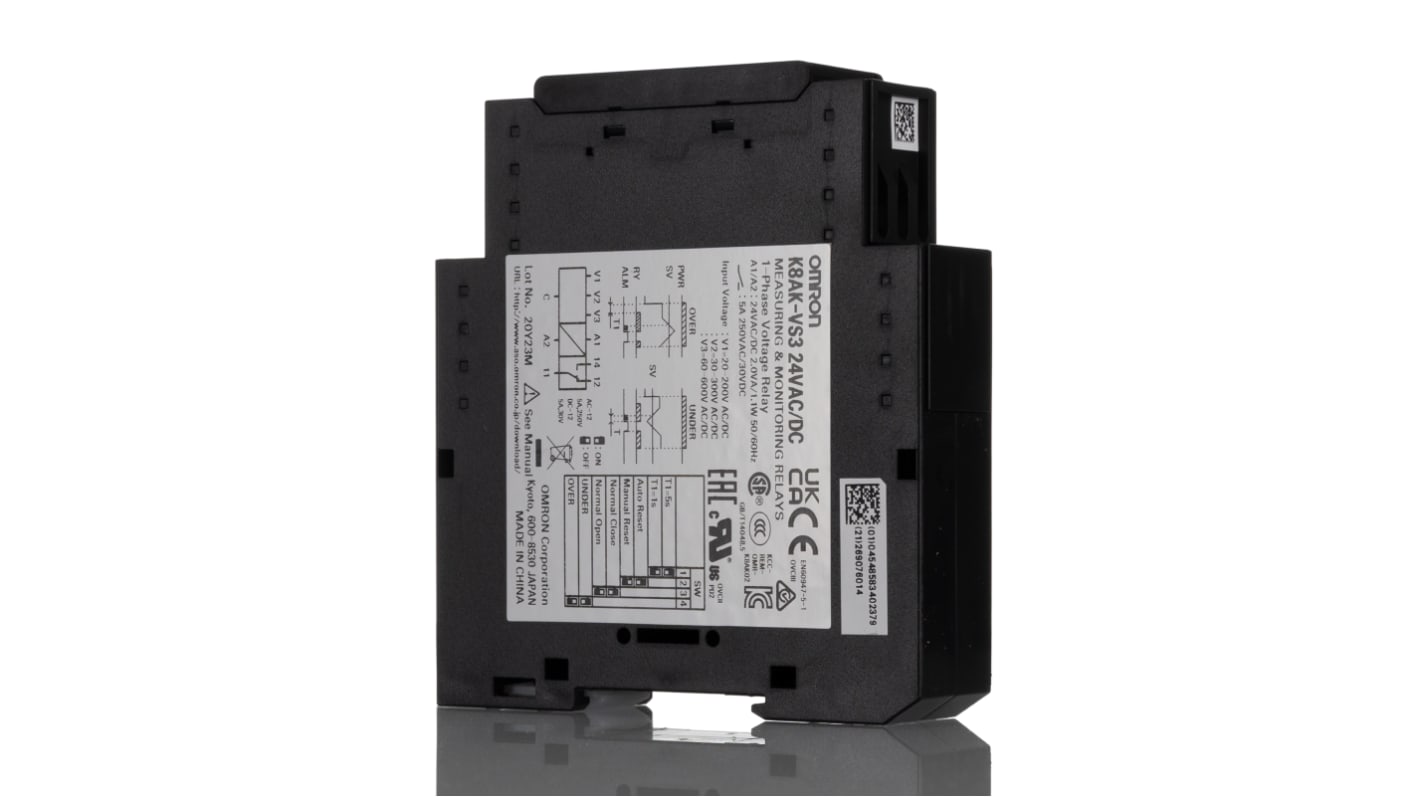

Relè di monitoraggio Omron K8AK-VS/VW
Il reset manuale e automatico può avvenire tramite un relè
Modalità di monitoraggio pre-allarme
Contenitori compatti
Resistente al rumore ad alta frequenza
Conforme agli standard globali di potenza e sicurezza
Modalità di monitoraggio pre-allarme
Contenitori compatti
Resistente al rumore ad alta frequenza
Conforme agli standard globali di potenza e sicurezza
La serie Omron K8AK di relè di monitoraggio è stata progettata sulla base di una lunga esperienza nel settore per effettuare il monitoraggio preciso e affidabile di apparecchiature e stabilimenti industriali. I relè K8AK-VW/VS sono la soluzione ideale per il monitoraggio di sottocorrente e di sovracorrente, che il K8AK-VW è in grado di effettuare simultaneamente.
K8AK-VS/VW
K8AK-TH
K8AK-VS/VW
K8AK-VS3 Monitoring Relay.
Monitors over and under voltages.
Manual reset and auto resetting supported by 1 relay.
One SPDT output relay. 5 A at 250 V ac (resistive load)
Can be normally closed or normally open. NC/NO.
LED output status indicator.
Process control signal (0 to 10 V) current splitter input supported.
Input frequency 40 Hz to 500 Hz
Inputs isolated from the power supply
Manual reset and auto resetting supported by 1 relay.
One SPDT output relay. 5 A at 250 V ac (resistive load)
Can be normally closed or normally open. NC/NO.
LED output status indicator.
Process control signal (0 to 10 V) current splitter input supported.
Input frequency 40 Hz to 500 Hz
Inputs isolated from the power supply
K8AK-VS3 24 VAC/DC Model.
Monitoring Relay.
Power supply 240 V ac/dc.
Setting range 20 to 200 V ac/dc, 30 to 300 V ac/dc, 60 to 600 V ac/dc.
Power supply 240 V ac/dc.
Setting range 20 to 200 V ac/dc, 30 to 300 V ac/dc, 60 to 600 V ac/dc.
Features and Benefits.
Power supply (isolated) 24 V ac/dc, 100 to 240 V ac.
Manual/ Automatic reset (switchable)
Manual reset – Turn OFF the power supply for minimum of 1 sec.
Power on lock time 1 s or 5 s (using DIP switch)
Green LED Power (PWR)
Yellow LED Relay output (RY)
Red LED Relay output (ALM)
One SPDT relay (NO/NC) using DIP switch
DIN Rail Mounted
Weight 150 g
Case material PC and ABS, UL 94 V-0
Colour N1.5
Protection IP20
Manual/ Automatic reset (switchable)
Manual reset – Turn OFF the power supply for minimum of 1 sec.
Power on lock time 1 s or 5 s (using DIP switch)
Green LED Power (PWR)
Yellow LED Relay output (RY)
Red LED Relay output (ALM)
One SPDT relay (NO/NC) using DIP switch
DIN Rail Mounted
Weight 150 g
Case material PC and ABS, UL 94 V-0
Colour N1.5
Protection IP20
What is a Monitoring / Measuring Relay?
A monitoring / measuring relay is a protective control device, various types are available suiting what you wish to monitor. The relays receive input signals then monitor them and then output an alarm signal when a set value is reached (alarm relays). The relays protect your equipment against over voltage and over current faults. Monitoring relays monitor AC power supplies, voltage and current, analogue signals detecting unusual activity in equipment against set alarm thresholds.
Types of Monitoring Relays Available?
Motor protection relays
Temperature monitoring relays
Water level control relays
Voltage
Current
Temperature monitoring relays
Water level control relays
Voltage
Current
Standard
UL 60947-5-1, UL 508, IP 20
Specifiche
Attributo | Valore |
---|---|
Applicazione di controllo | Tensione |
Fase elettrica | 1 |
Gamma di sensibilità alla tensione | 20 → 200 V c.a./c.c., 30 → 300 V c.a./c.c., 60 → 600V ca/cc |
Configurazione contatto | SPDT |
Sensibilità alla tensione | Sovratensione, Sottotensione |
Ritardo | 0,1 → 30s |
Serie | K8AK-VS |
Larghezza | 100mm |
Massima temperatura operativa | +60°C |
Lunghezza | 22.5mm |
Temperatura di esercizio | +60°C |
Altezza | 95mm |
Tensione massima rilevata | 200 V ac/dc, 300 V ac/dc, 600V ca/cc |
Minima temperatura operativa | -20°C |
Tensione minima rilevata | 20 V c.a./c.c., 30 V c.a./c.c., 60V ca/cc |
Dimensioni | 22.5 x 100 x 95mm |
