- Codice RS:
- 162-8569
- Codice costruttore:
- DRV8844PWP
- Costruttore:
- Texas Instruments
Prodotto non a stock - in consegna appena disponibile
Prezzo per Cadauno (in una stecca da 50)
3,676 €
(IVA esclusa)
4,485 €
(IVA inclusa)
Unità | Per unità | Per stecca* |
50 + | 3,676 € | 183,80 € |
*prezzo indicativo |
- Codice RS:
- 162-8569
- Codice costruttore:
- DRV8844PWP
- Costruttore:
- Texas Instruments
Documentazione Tecnica
Normative
- Paese di origine:
- MY
Dettagli prodotto

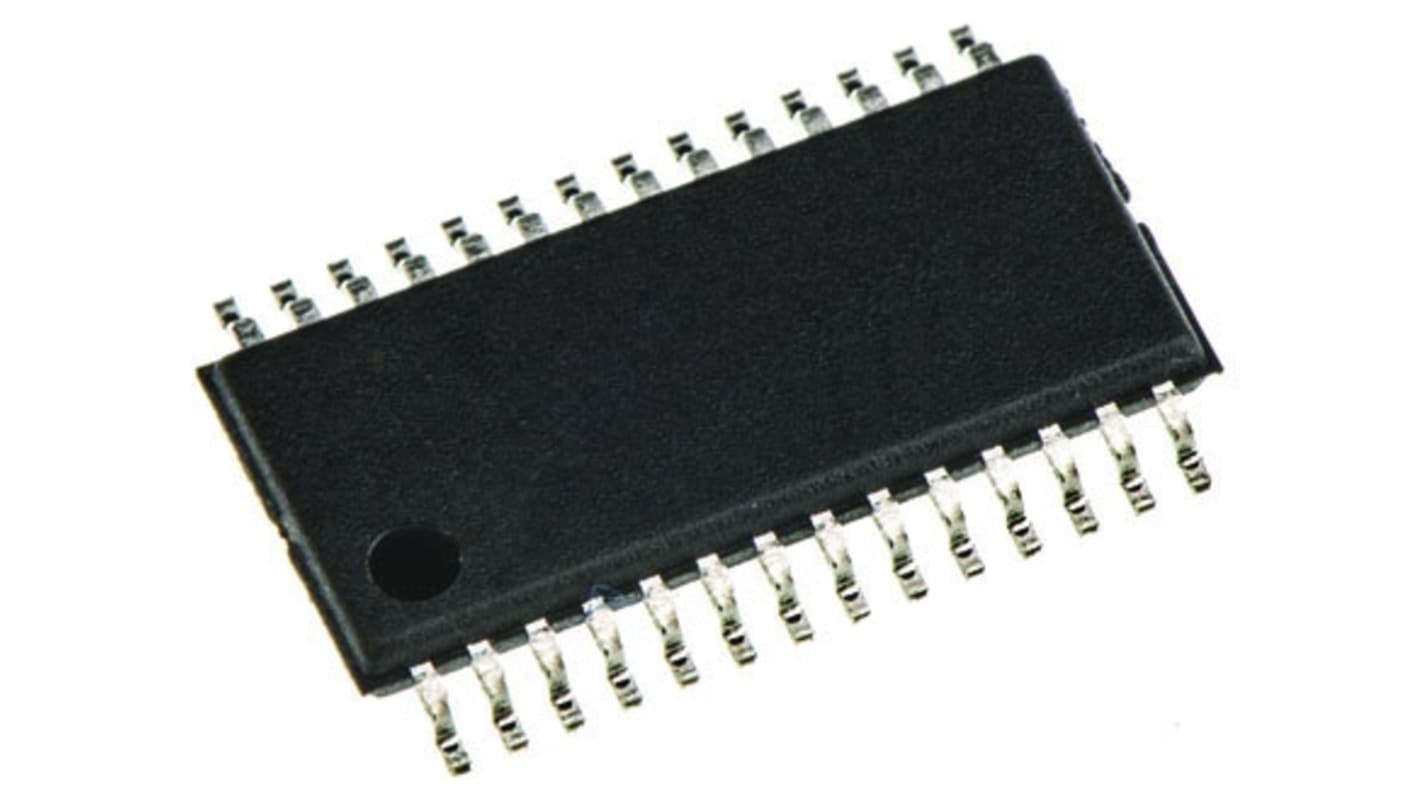

Azionamenti per motore c.c. con spazzole (BDC) con FET, Texas Instruments
Azionamenti per motori e driver, Texas Instruments
Specifiche
Attributo | Valore |
---|---|
Tipo di motore | c.c. con spazzole |
Configurazione dell'uscita | Half bridge quadruplo |
Corrente massima collettore IGBT | 3.5A |
Tensione massima collettore emitter | 60 V |
Tipo di montaggio | Montaggio superficiale |
Tipo di package | HTSSOP |
Numero pin | 28 |
Tensione di alimentazione operativa massima | 60 V |
Tensione di alimentazione operativa minima | 8 V |
Dimensioni | 9.8 x 4.5 x 1.05mm |
Altezza | 1.05mm |
Lunghezza | 9.8mm |
Massima temperatura operativa | +80 °C |
Minima temperatura operativa | -40 °C |
Larghezza | 4.50mm |
