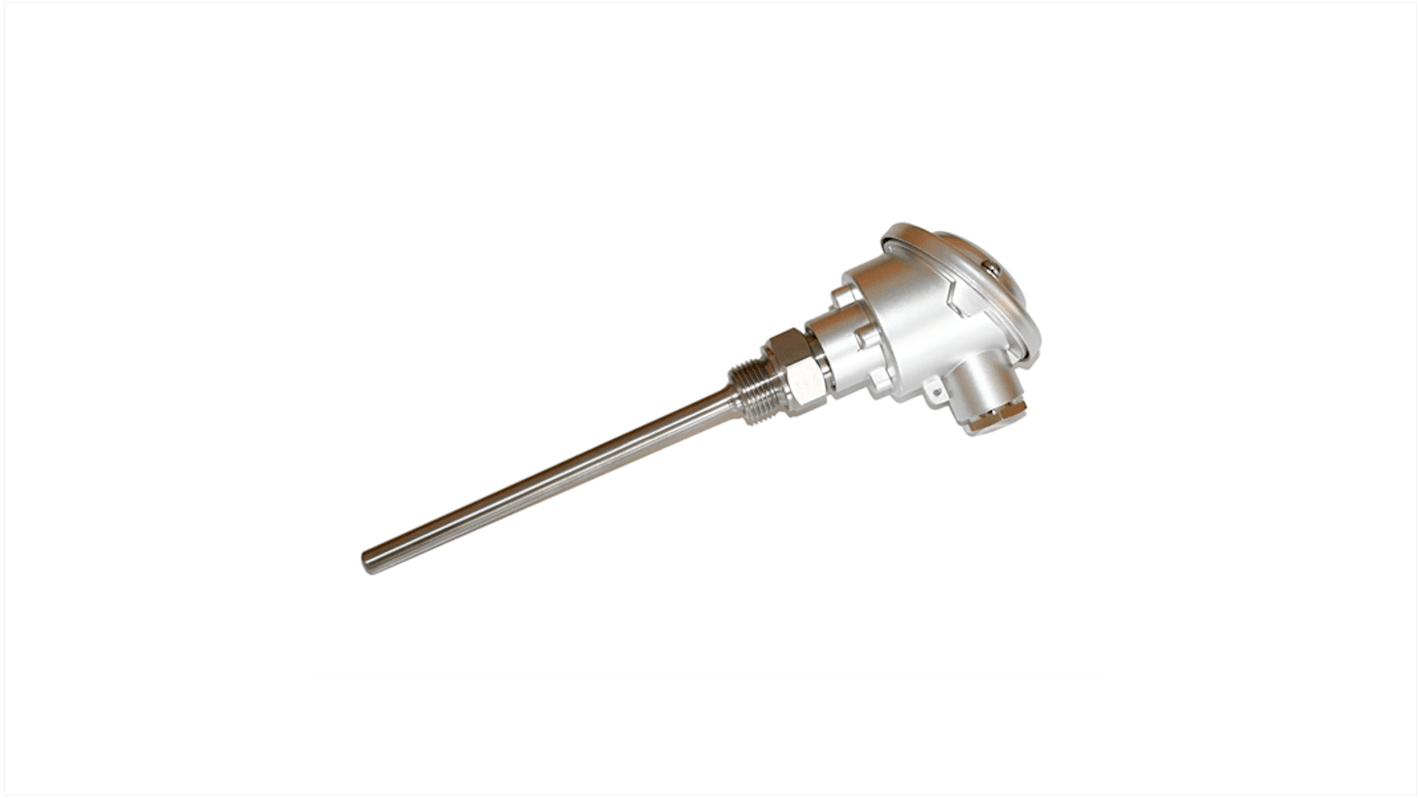

Sensore RTD PT100 Electrotherm, Ø 9mm, L. 100mm, +200°C max
- Codice RS:
- 273-1761
- Codice costruttore:
- 372-0/10-E-3LS-100-G1/2-2
- Costruttore:
- Electrotherm
3 Disponibile per la consegna entro 2 giorni lavorativi, per ordini effettuati entro le 19:00 (magazzini in Europa)
Prezzo per Unità
193,70 €
(IVA esclusa)
236,31 €
(IVA inclusa)
Unità | Per unità |
---|---|
1 + | 193,70 € |
- Codice RS:
- 273-1761
- Codice costruttore:
- 372-0/10-E-3LS-100-G1/2-2
- Costruttore:
- Electrotherm
Documentazione Tecnica
Normative
- Paese di origine:
- DE
Dettagli prodotto
I rilevatori di temperatura a resistenza o RTD Electrotherm sono utilizzati per rilevare gamme di temperatura e livelli di resistenza variabili. Questi RTD sono noti anche come termometri a resistenza. L'RTD è composto da un elemento resistenza e fili di rame isolati. Questo
Classe di precisione B
Grado di protezione IP54
Supporto standard DIN EN 60529
Segnale di uscita da 4 a 20 mA e da 0 a 10 V
Grado di protezione IP54
Supporto standard DIN EN 60529
Segnale di uscita da 4 a 20 mA e da 0 a 10 V
Specifiche
Attributo | Valore |
---|---|
Tipo sensore | PT100 |
Lunghezza sonda | 100mm |
Diametro sonda | 9mm |
Temperatura minima rilevata | 0°C |
Temperatura massima rilevata | +200°C |
Collegamento al processo | G1/2 |
Numero di cavi | 3 |
Precisione | 3 DIN EN 60751 °C, F0 °C |
