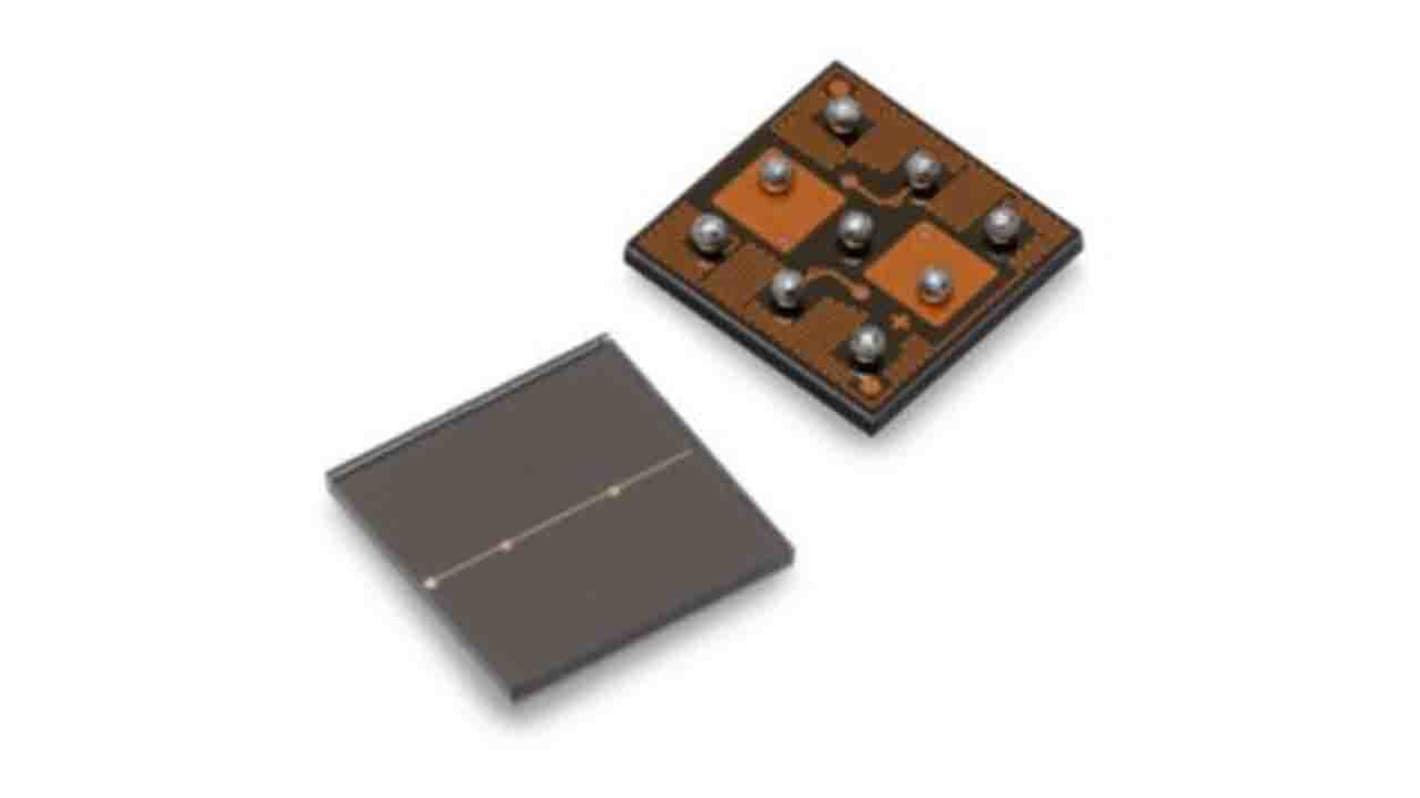

Fotomoltiplicatore Broadcom AFBR-S4N33C013 Fotomoltiplicatore a 1 elementi, Superficie, CSP

Al momento non disponibile
Non sappiamo se questo articolo tornerà in stock, RS intende rimuoverlo a breve dall'assortimento.
Opzioni di confezione:
Codice RS:
202-8730
Codice costruttore:
AFBR-S4N33C013
Costruttore:
Broadcom
Trova prodotti simili selezionando uno o più attributi.
Seleziona tutto

Marchio

Broadcom

Tipo prodotto

Fotomoltiplicatore

Standard automobilistico

No

Tipo elemento

Fotomoltiplicatore

Numero elementi

1

Tipo montaggio

Superficie

Tipo di package

CSP

Lunghezza

3.1 mm

Numero aghi

9

Serie

NUV-HD SiPM

Standard/Approvazioni

RoHS and REACH compliant

Larghezza

3.1 mm

Paese di origine:
DE
Broadcom® AFBR-S4N33C013 NUV-HD Single Silicon Photomultiplier (SiPM) is used in applications that detect low-level pulsed light sources such as Cherenkov or scintillation light from organic and inorganic scintillator materials. The SiPM produces an ultra-sensitive precision measurement of single photons and will detect light wavelengths from near-ultraviolet (UV) in the visible light spectrum. The photomultiplier has a high sensitivity towards the blue light region of the light spectrum.

The single silicon multiplier uses through silicon via (TSV) technology and has an Active 3 x 3 mm2 area. Scaling up multiple AFBR-S4N33C013 ICs can produce a bigger area letting you create an array with not much edge loss.

The Broadcom® NUV-HD SiPM includes applications such as time correlated single photon counting, X-ray and gamma ray detection, gamma ray spectroscopy. The photomultiplier AFBR-S4N33C013 can be implemented in areas such as life sciences n flow cytometry, astrophysics, nuclear medicine as well as safety and security.

Features:

High photon detection efficiency (PDE) more than 54% at 420 nm

Single photon time resolution (SPTR) and coincidence time resolution (CRT)

TSV technology (4-side Scalable), with high fill factors

Size 3.14 x 3.14 mm2

Cell pitch (SPAD pitch) 30 x 30 μm2

A highly transparent glass protection layer

Operating temperature range from –40°C to +85°C

RoHS and REACH compliant

Lead free

Detecting light from organic (plastic) and inorganic scintillator materials examples: LSO, LYSO, BGO, NaI, CsI, BaF, LaBr.
