- Codice RS:
- 179-3993
- Codice costruttore:

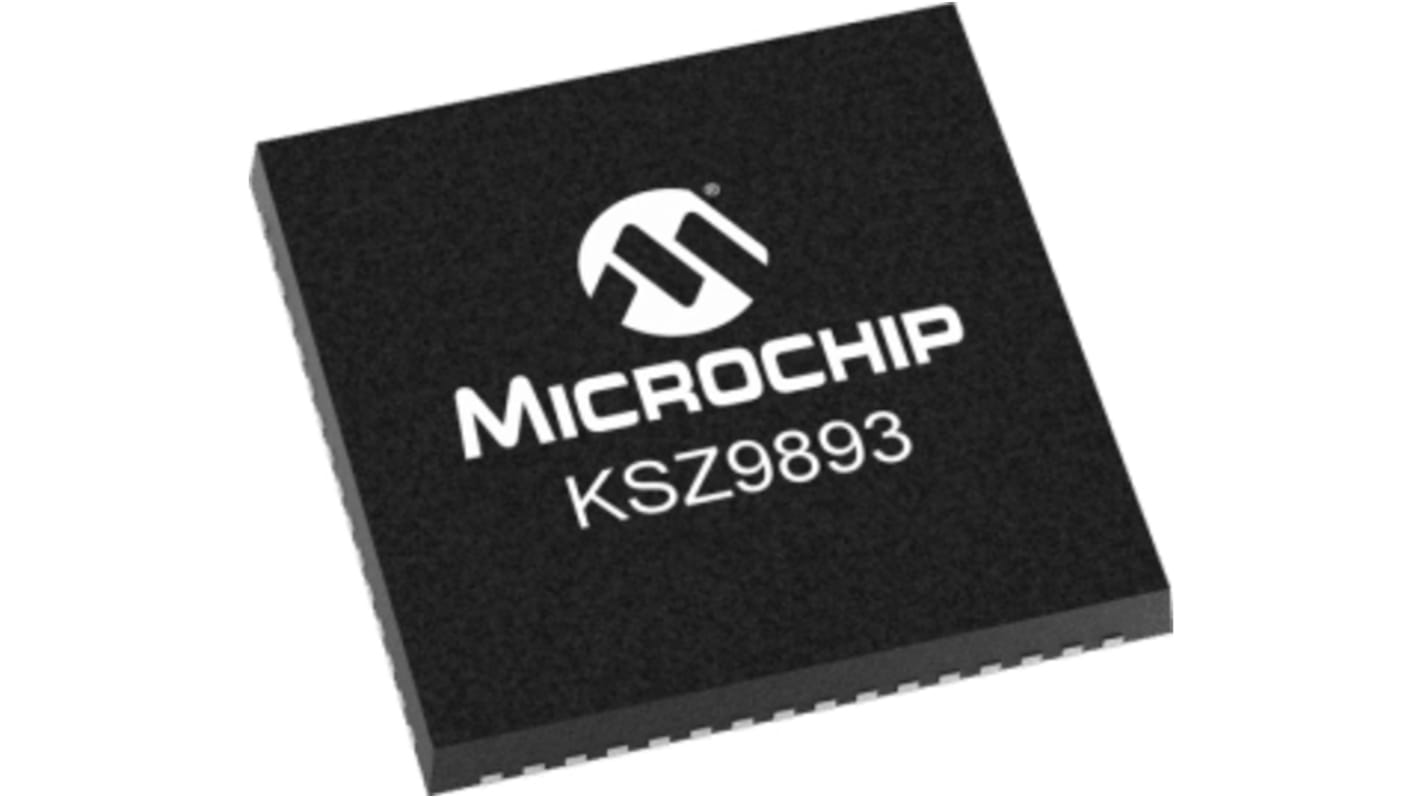

- KSZ9893RNXC
- Costruttore:
- Microchip
240 Disponibile per la consegna entro 1 giorni lavorativi, per ordini effettuati entro le 19:00 (magazzini in Europa/UK)
Prezzo per 1pz in confezione da 2
6,985 €
(IVA esclusa)
8,522 €
(IVA inclusa)
Unità | Per unità | Per Pack* |
2 + | 6,985 € | 13,97 € |
*prezzo indicativo |
- Codice RS:
- 179-3993
- Codice costruttore:
- KSZ9893RNXC
- Costruttore:
- Microchip
Documentazione Tecnica
Normative
- Paese di origine:
- TW
Dettagli prodotto
The KSZ9893 is a fully integrated layer 2, managed, three-port gigabit Ethernet switch with numerous advanced features. Two of the three ports incorporate 10/100/1000 Mbps PHYs. The other port has interfaces that can be configured as RGMII, MII or RMII. This port may connect directly to a host processor or to an external PHY. Full register access is available by SPI or I2C interfaces, and by optional in-band management via any of the data ports.
Non-blocking wire-speed Ethernet switching fabric
Full-featured forwarding and filtering control, including Access Control List (ACL) filtering
Full VLAN and QoS support
Two ports with integrated 10/100/1000BASE-T PHYs
One port with 10/100/1000 Ethernet MAC and configurable RGMII/MII/RMII interface
IEEE 802.1X port-based authentication support
EtherGreenTM power management features, including low power standby and IEEE 802.3az
Flexible management interface options: SPI, I2C, MIIM, and in-band management via any port
Full-featured forwarding and filtering control, including Access Control List (ACL) filtering
Full VLAN and QoS support
Two ports with integrated 10/100/1000BASE-T PHYs
One port with 10/100/1000 Ethernet MAC and configurable RGMII/MII/RMII interface
IEEE 802.1X port-based authentication support
EtherGreenTM power management features, including low power standby and IEEE 802.3az
Flexible management interface options: SPI, I2C, MIIM, and in-band management via any port
Specifiche
Attributo | Valore |
---|---|
Interfaccia network | RGMII,MII,RMII |
Interfaccia | IC switch |
Flusso dati | 10/100MBPS |
Numero massimo di porte | 3 |
Supporto VLAN | Sì |
Tipo di montaggio | Montaggio superficiale |
Tipo di package | VQFN |
Numero pin | 64 |
Dimensioni | 8 x 8 x 0.85mm |
Minima temperatura operativa | 0 °C |
Massima temperatura operativa | +70 °C |
