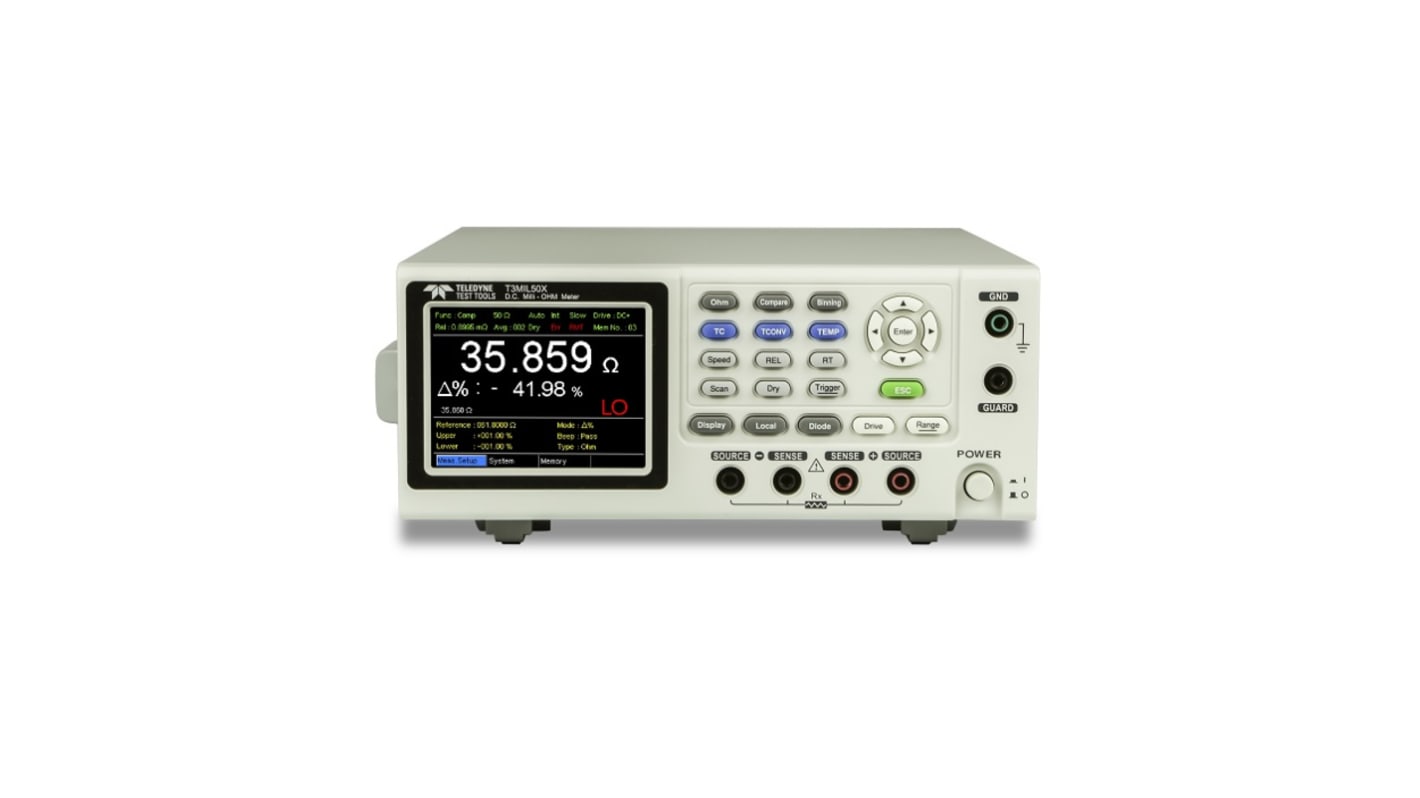

Ohmmetro Teledyne LeCroy T3MIL50X a 4 cavi, 4 cavi, 5 mΩ max 0.1 μΩ
- Codice RS:
- 245-6380
- Codice costruttore:
- T3MIL50
- Costruttore:
- Teledyne LeCroy
- Codice RS:
- 245-6380
- Codice costruttore:
- T3MIL50
- Costruttore:
- Teledyne LeCroy
Specifiche
Documentazione Tecnica
Normative
Dettagli prodotto
Trova prodotti simili selezionando uno o più attributi.
Seleziona tutto | Attributo | Valore |
|---|---|---|
| Marchio | Teledyne LeCroy | |
| Taratura | LATCAL | |
| Tipo prodotto | Ohmmetro | |
| Numero di modello | T3MIL50X | |
| Tipo di misura | 4 cavi, 4 cavi | |
| Misurazione resistenza massima | 5 mΩ | |
| Risoluzione resistenza | 0.1 μΩ | |
| Taratura | LATCAL | |
| Altezza | 102 mm | |
| Lunghezza | 283 mm | |
| Precisione massima | 0.05 % | |
| Temperatura massima di funzionamento | 40 °C | |
| Precisione minima | 0.2 % | |
| Minima temperatura operativa | 0 °C | |
| Sorgente di alimentazione | Da 100 a 240 V ca | |
| Standard/Approvazioni | IEC 61000-4-7 | |
| Peso | 3 kg | |
| Larghezza | 223 mm | |
| Seleziona tutto | ||
|---|---|---|
Marchio Teledyne LeCroy | ||
Taratura LATCAL | ||
Tipo prodotto Ohmmetro | ||
Numero di modello T3MIL50X | ||
Tipo di misura 4 cavi, 4 cavi | ||
Misurazione resistenza massima 5 mΩ | ||
Risoluzione resistenza 0.1 μΩ | ||
Taratura LATCAL | ||
Altezza 102 mm | ||
Lunghezza 283 mm | ||
Precisione massima 0.05 % | ||
Temperatura massima di funzionamento 40 °C | ||
Precisione minima 0.2 % | ||
Minima temperatura operativa 0 °C | ||
Sorgente di alimentazione Da 100 a 240 V ca | ||
Standard/Approvazioni IEC 61000-4-7 | ||
Peso 3 kg | ||
Larghezza 223 mm | ||
- Paese di origine:
- CN
Teledyne LeCroy D.C. Milli-OHM Meter
Teledyne Test Tools introduces a brand new series of D.C. Milli-Ohm meters. The T3MIL series offers two models T3MIL50 and T3MIL50X, which features a 3.5-inch TFT display with a measurement accuracy of 0.05 %, maximum 50,000 count measurement display and sampling rate of 60 readings per second. The T3MIL series also provides four wire measurement as well as temperature measurement and temperature compensation functions to meet the requirements of low resistance measurement applications.
Features & Benefits
50,000 Counts Display
High Accuracy of 0.05 %
Fast measurement of 60 readings per second
3.5 (320 x 240) TFT LCD Display
1Amp Test Current, 0.1 μΩ Resolution
Delayed measurement
Applications
Production testing of contact resistance of switches, relays, connectors, cables, and other low Resistance Devices
Production testing of various inductive components (coil, choke, and transformer winding etc.
Testing of low Value resistors, fuses, and heating elements
Winding resistance of motors, transformers, solenoids, and ballasts
Conductivity evaluation in product design
Incoming inspection and quality assurance testing
